Jy sien 'n skeur in jou geomembraanvoering of sien die watervlak daal. Nou staan ​​jy voor 'n kritieke keuse: is dit 'n eenvoudige oplossing, of die eerste teken van 'n totale mislukking?

Herstel is die beste vir klein, geïsoleerde gate (<15 cm) op 'n nuwer voering (<15 jaar oud). Vervanging is nodig vir ouer voerings met wydverspreide skade, lang krake of mislukte nate, aangesien dit aandui dat die materiaal self afbreek.

As a geosynthetics supplier, I get this call all the time. The decision between repair and replacement has huge financial consequences. A proper patch can save a project and buy you years of service life. But trying to patch a liner that is fundamentally failing is like putting a band-aid on a broken bone—a costly and ineffective exercise that only delays the inevitable. To make the right call, you need to know exactly what you're looking at.

What visible signs indicate that a geomembrane is aging or failing?

You look at your liner and see something's off, but you're not sure if it's serious. Ignoring a critical symptom of aging could lead to a sudden, complete failure of your containment system.

The most common visible signs of failure are long, branching cracks, a chalky or white surface, brittleness, and obvious holes or tears. These point to material degradation, not just simple physical damage.

Learning to Read the Liner

Over the years, I've taught clients to distinguish between simple damage and true material failure. A clean cut from a tool is one thing, but when the material itself starts to give up, the signs are very different.

• Material Degradation vs. Physical Damage
  A puncture is a hole forced into a healthy material. Material degradation is when the liner's own structure begins to fail. The most telling sign of this is long, branching cracks that look like a spiderweb. This isn't from a single impact; it's a sign of stress from UV exposure or temperature changes causing the polymer to break down. Another key sign is "chalking," where the surface turns whitish and feels powdery. This is the top layer of the liner literally disintegrating from sun exposure.

• The "Feel" Test
  'n Eenvoudige veldtoets wat ek aanbeveel, is om 'n klein monster versigtig uit 'n geaffekteerde, nie-kritiese area te sny (indien moontlik). Vergelyk sy buigsaamheid met 'n nuwe stuk geomembraan. As die ou stuk bros is en kraak wanneer jy dit buig, of skeur met baie min moeite, is sy strukturele integriteit weg. Dit het sy elastisiteit verloor, wat noodsaaklik is vir die hantering van grondbeweging en -druk.

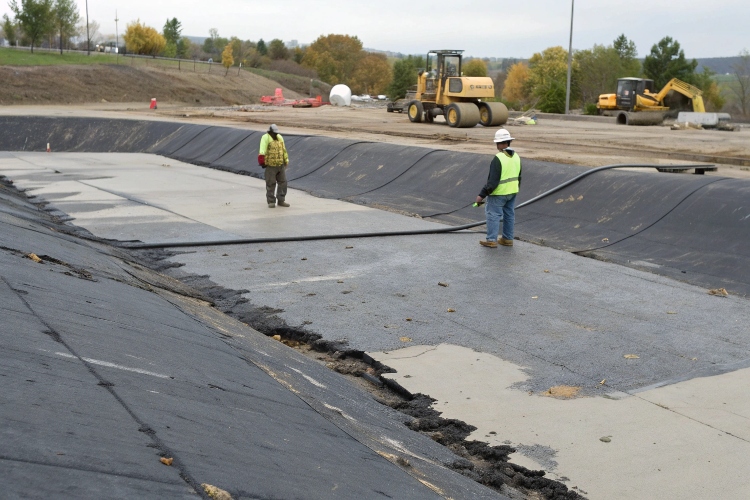

Hoe kan ek weet of 'n lek herstel of vervanging beteken?

You have a confirmed leak, and the pressure is on to fix it. A quick patch seems like the easy answer, but you could be just plugging one hole in a sinking ship.

One or two small holes on a younger liner are ideal for patching. Multiple leaks, widespread damage, or any failure along a welded seam means the system's integrity is compromised and replacement is the only reliable solution.

Assessing the Scope of the Damage

When I get a call about a leak, my first questions are always "How many?" and "Where?". The answer tells me whether we're dealing with a localized problem or a system-wide failure.

• The "Repair Zone"
  A single puncture with a diameter smaller than 15 cm on a liner that is less than 15 years old is in the perfect "repair zone." Dit is goeie nuus. Dit beteken die omliggende geomembraan is steeds gesond en sterk genoeg om 'n permanente binding met 'n gelaste pleister te vorm. Dit is 'n geïsoleerde voorval, nie 'n simptoom van 'n groter probleem nie. 'n Behoorlike pleister kan die voering tot volle funksie herstel.

• The "Replacement Zone"
  As jy lekkasies op verskeie plekke vind, of as die voering meer as 15 jaar oud is, het jy die vervangingsone betree. Hierdie patroon van mislukking dui aan dat die materiaal self swak en poreus word. Om een ​​plek te pleister, sal net spanning op 'n ander plaas, en 'n nuwe lekkasie sal waarskynlik naby verskyn. Die belangrikste, as die lek op 'n gelaste naat is, is dit 'n groot rooi vlag. Nate is die ruggraat van die stelsel; lap oor hulle is nie 'n betroubare oplossing. Die ou naat moet deur 'n professionele persoon uitgesny en heeltemal weer gesweis word. Op daardie stadium is 'n volledige vervanging dikwels die veiliger, meer koste-effektiewe langtermynoplossing.

Hoe beïnvloed dienslewe en omgewingsblootstelling vervangingstydsberekening?

Jou liner is 20 jaar oud en lyk goed, maar jy wonder of dit op geleende tyd leef. Hoe weet jy wanneer die beoogde dienslewe werklik verby is?

Die meeste HDPE geomembrane is ontwerp om 20-40 jaar te hou wanneer dit begrawe word, maar hierdie lewensduur word aansienlik verkort deur direkte UV-blootstelling. 'n Blootgestelde voering moet baie vroeër geëvalueer word vir vervanging, dikwels rondom die 25-jaarmerk.

Die lewensduurklok is nie vas nie

A geomembraanse dienslewe is nie 'n eenvoudige vervaldatum nie. Dit is 'n prestasievenster wat sterk deur sy omgewing beïnvloed word. Ek herinner my kliënte altyd daaraan dat hoe jy die voering installeer en in stand hou net so belangrik is soos die materiaal self.

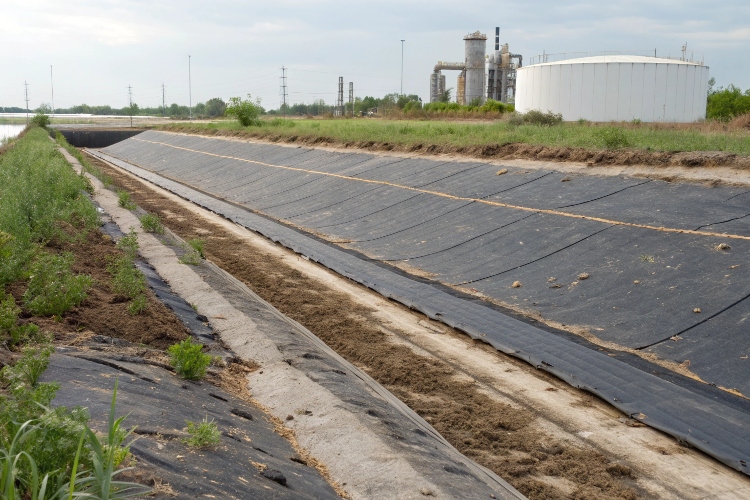

• Begrawe vs. Blootgestel
  The single biggest factor affecting lifespan is a protective cover. A geomembrane buried under soil, rock, or water is shielded from its greatest enemy: ultraviolet radiation. A buried HDPE liner can reliably perform for 30, 40, or even more years. However, if that same liner is left exposed to direct sunlight, the UV rays constantly attack the polymer structure. This "UV accelerator" means an exposed liner's effective service life is shortened dramatically. I advise clients with exposed liners to begin planning for replacement avaliação as they approach 25 years, even if there are no major visible issues.

• Professional Health Checks for Liners
  For critical projects, guessing isn't good enough. You can scientifically measure a liner's remaining lifespan. The industry-standard test is called Oxidative Induction Time (OIT). A technician takes a small sample of the liner and uses a machine to measure how much antioxidant is left in the material. This tells you exactly how much "fight" the liner has left against degradation. It's like a blood test for your geomembrane, taking the guesswork out of your replacement decision.

Watter eksterne faktore dui aan dat die voering se werkverrigting nie meer betroubaar is nie?

Skielik misluk jou perfekte inperkingstelsel. Dit is dalk nie die voering se skuld nie - die terreintoestande kan verander het, wat nuwe bedreigings skep waarvoor die stelsel nie ontwerp is nie.

Onverwagte chemiese blootstelling, skade deur grawende diere of wortels, en groot grondnedersetting is eksterne bedreigings wat dikwels volledige vervanging vereis. 'n Eenvoudige pleister kan nie 'n onderliggende, voortdurende probleem oplos nie.

Wanneer die probleem buite die voering is

Sometimes, the geomembrane is a victim of its environment. When I troubleshoot a failing liner, I always ask, "What has changed at the site?" The liner may be performing exactly as designed, but the conditions have become too aggressive for it to handle.

• Chemical, Biological, and Physical Attacks
  If the contents of your pond or lagoon change to include chemicals the liner wasn't rated for, it will degrade quickly. Similarly, if burrowing animals or aggressive tree roots have invaded the site, they will create constant new punctures. You can patch one hole, but you can't stop the ongoing damage. In these cases, the external threat must be eliminated, and the damaged liner is often too compromised to save, requiring a full replacement.

• Subgrade Failure and Installation Defects
  A geomembrane is only as stable as the ground beneath it. If the subgrade settles, shifts, or erodes, it can stretch the liner to its breaking point. No amount of patching can fix a liner that is under constant tension from an unstable foundation. Likewise, if a site inspection reveals widespread installation defects—like poor welds or excessive wrinkling—these create hundreds of weak points. It is far more cost-effective and reliable to replace the entire system correctly than to chase after an endless series of small repairs. Regular inspections, at least every six months and after major weather events, are the best way to catch these external factors early.

Gevolgtrekking

Deciding between repair and replacement hinges on the damage type and liner age. Repair isolated punctures on young liners, but replace old, brittle liners with widespread failures to ensure long-term integrity.
