Geosynthetic Clay Liners (GCLs) have become a cornerstone of modern landfill barrier systems, offering a low-permeability solution in a compact, easy-to-install roll. However, a GCL is not a one-size-fits-all product. Its long-term performance is deeply intertwined with the site’s specific geology and, most critically, the behavior of groundwater. Ignoring these factors can lead to a compromised barrier and potential environmental failure.
Wannan cikakken jagorar yayi bayanin yadda ake tantance cancantar GCLs a ƙarƙashin yanayi daban-daban na yanayin ƙasa da tebirin ruwa mai jujjuyawa. Za mu shiga cikin kasadar da ke da alaƙa da nau'ikan ƙasa daban-daban, hanyoyin da ruwan ƙasa ke yin tasiri akan bentonite, kuma za mu samar da tsayayyen tsarin yanke shawara-tare da misalai na zahiri-don taimaka muku ƙirƙira ingantaccen tsarin tsarewa.
Don yanke shawarar da aka sani, dole ne mu fara fahimtar yadda GCL ke aiki da abin da ke sa ta zama mai rauni.
Tushen GCLs da Injinan Kayawar Ruwansu
GCL abu ne da aka kera masana'anta. Tsarinsa yana da sauƙi amma yana da tasiri: ƙaramin yumbu na sodium bentonite na bakin ciki yana yin sandwiched tsakanin nau'ikan geotextiles guda biyu, waɗanda aka buga da allura ko ɗinka tare don tabbatar da bentonite.
Sihiri yana faruwa lokacin da bentonite ya sami ruwa. Yana kumbura don samar da wani m, monolithic gel tare da ƙarancin ƙarancin ƙarfi, sau da yawa ƙasa da 5 × 10⁻ cm/s. Wannan aikin kumburi shine abin da ke haifar da shinge na hydraulic. Mahimman ma'aunin aikin da muke kallo sun haɗa da:
- Lalacewa: Ma'aunin farko na ikonsa na toshe kwararar ruwa.
- Fihirisar Kumburi: A measure of the bentonite’s potential to swell upon hydration.
- Ƙarfin Ƙarfafawa: The liner’s ability to resist pulling forces, especially important for slope applications.
A cikin wuraren ajiyar ƙasa, ana amfani da GCLs don basal liners (a ƙasa), a kan gangara, kuma a matsayin wani ɓangare na tsarin rufewa na ƙarshe.

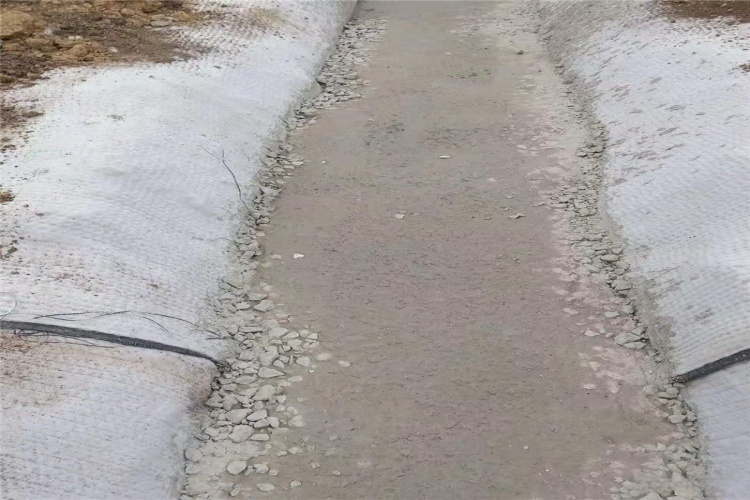

Dacewar GCL A ƙarƙashin Sharuɗɗan Geological Daban-daban
The soil or "subgrade" GCL da aka sanya a kai yana da tasiri mai zurfi akan aikin sa.
Ayyukan GCL akan Matsalolin Cayay
Ƙarƙashin yumɓu mai ƙyalƙyali mai kyau, tare da ƙananan ƙarancinsa (misali. < 1 × 10⁻ cm/s), shine tushen tushe na GCL. Tushen yumbu yana ba da tsayayyen dandamali, yana rage asarar ruwa daga GCL zuwa cikin ƙasan ƙasa, kuma yana ba da matakan ɗaukar hoto na biyu. Wannan yanayin yanayin ƙananan haɗari ne inda ma'auni na GCL sau da yawa yana yin aiki na musamman.
Hadarin GCL akan Ƙasa mai Yashi ko Ƙarƙashin Ƙarfafawa
Sanya GCL kai tsaye akan yashi, tsakuwa, ko dutsen da ya karye hanya ce mai haɗari. Sojoji na gani na iya haifarwa bentonite yashwa, inda ruwa ke gudana ta jiki yana wanke barbashi na bentonite daga cikin sanwicin geotextile. Don rage wannan, a yashi mai kariya ko Layer matashin matashin geotextile ana buƙatar sau da yawa a ƙarƙashin GCL. A mafi yawan lokuta, yin amfani da GCL a matsayin wani ɓangare na tsarin haɗin gwiwa tare da abin rufewa na HDPE geomembrane shine kawai ƙira mai aminci.
Kalubale na GCL akan Rarraba Masu Rauni ko Rauni
Rarraba tare da babban abun ciki na halitta, kamar silt ko peat, tushe mara kyau ne. Suna da wuyar haɗawa kuma suna da sauƙi bambancin sulhu. Wannan na iya haifar da wrinkles, voids, ko tashin hankali a cikin GCL, haifar da yuwuwar hanyoyin zubewa. Magani mai faɗi mai faɗi, kamar cire ƙasa mai laushi da maye gurbinsa da injin cikawa, yana da mahimmanci kafin a iya yin la'akari da GCL.
Aikace-aikacen GCL akan Ƙasar da ba ta bi ka'ida ba ko Karaya
GCLs suna ba da fa'ida mai mahimmanci akan laka mai kauri (CCLs) akan ƙasa mara kyau saboda sassaucin su. Suna iya yin daidai da filaye marasa daidaituwa da sauƙi. Don gangaren gangare ko wuraren da ke da yuwuwar ƙarami, a ƙarfafa GCL tare da mafi girman ƙarfin juzu'i na ciki ana bada shawarar don tabbatar da kwanciyar hankali.
Tasirin Juyin Ruwan Ƙasa a kan GCL Performance
Tebur mai jujjuyawar ruwa yana ɗaya daga cikin manyan barazana ga zaman lafiyar GCL. Hanyoyin gazawar suna da haɗin kai.
Dry-Wet Zagaye
When the groundwater level drops, a hydrated GCL can dry out and shrink, potentially forming desiccation cracks. When the water table rises again, the GCL re-swells, but repeated cycles can lead to a ‘saw-tooth’ pattern of cracking and a measurable increase in permeability. Research has shown that these cycles are a primary cause of long-term performance degradation.
Bentonite Hijira da Rasa
Matsakaicin matakan ruwa na ƙasa, musamman yanayin artesian inda ruwa ke gudana zuwa sama, na iya fitar da barbashi na bentonite a zahiri daga cikin layin. Wannan haɗari yana ƙaruwa a cikin ƙasa mai yashi. Bugu da ƙari kuma, idan ruwan ƙasa ko leachate yana da yawan gishiri mai yawa (watau babban abun ciki na cation), zai iya danne karfin kumburin sodium bentonite ta hanyar musayar ion, yana rage tasirinsa har abada.
Matsalolin Hydrostatic da Nakasar Tsari
Upward pressure from a high water table can lift and create large wrinkles or "whales" in the liner, creating channels for rapid liquid flow. When saturated on slopes, the GCL’s internal shear strength can decrease, potentially compromising slope stability.
Daskare – Narke Zagaye
A cikin yankuna masu sanyi, ruwan da ke cikin GCL mai ruwa zai iya daskarewa da fadadawa, yana rushe tsarin yumbu. Lokacin da aka haɗe shi da busassun busassun hawan keke, wannan tsari yana hanzarta lalata aikin hydraulic na layin.
Haɗin Haɗin Haɗin Kima da Tsarin Tsari
Don zaɓar ƙirar da ta dace, dole ne mu ƙididdige tsarin ƙasa da ruwan ƙasa tare. Wannan matrix yanke shawara yana haɗa haɗari zuwa shawarwari masu aiki.
| Yanayin Geologic | Juyin Ruwan Ƙasa | GCL Dacewar | Maganin Zane Na Shawarar |
|---|---|---|---|
| Madalla Clay | Barga (<0.5m) ku | ✓✓(Madalla) | Daidaitaccen GCL yana da kyau, ana iya amfani da shi kaɗai ko a cikin abin da aka haɗa. |
| Madalla Clay | Matsakaici (0.5-1.5m) | ✓ (mai kyau) | GCL + HDPE geomembrane composite. Ƙara magudanar ruwa. |
| Madalla Clay | Babban (>1.5m) ko akai-akai | ✓ (Adalci) | GCL shine sakandare. Shamaki na farko dole ne ya zama geomembrane HDPE. |
| Sandy / High Perm. | Barga (<0.5m) ku | ✓ (Adalci) | GCL yana buƙatar shimfiɗar matashin yashi a ƙasa. Haɗa w/ geomembrane shawarar. |
| Sandy / High Perm. | Matsakaici (0.5-1.5m) | △ (Haɗari) | Guji GCL kadai. Dole ne a yi amfani da haɗin GCL + geomembrane tare da m subgrade shiri & magudanar ruwa. |
| Sandy / High Perm. | Babban (>1.5m) ko High Flow | ✗ (Ba a ba da shawarar ba) | HDPE geomembrane shine zaɓi na farko. Yi amfani da GCL kawai azaman Layer na biyu akan gangara, idan ta kasance. |
| Mai laushi Subgrade | Kowa | △ (Haɗari) | Yana buƙatar haɓaka ƙasa mai yawa (misali, ≥15cm matashin yashi, geogrids). Yi amfani da kullun a cikin tsarin haɗin gwiwa. |
| Ƙasar da ba ta dace ba | Barga zuwa ƙasa | ✓ (mai kyau) | An fi son ƙarfafa GCL don gangara. Kyakkyawan sassauci. |
Misalin Harka Injiniya: Na'urar Filayen Kasa Na Musamman
Let’s apply this framework to a hypothetical site.
-
Yanayi: Haɗin yumbu mai kyau a gindin, yashi na tsaka-tsaki, da wasu ƙasa mai laushi na sama. Teburin ruwan ƙasa yana jujjuya lokaci-lokaci da mita 1.0-2.0. Leachate yana da babban abun ciki na gishiri.
-
Maganin Zane:
- Tsarin Layi na Ƙasa: Anan, jujjuyawar tana da matsakaici amma ƙasa tana da kyau. Za mu tono ƙasa mai laushi, mu shirya ginin yumɓu mai yumɓu, kuma mu yi amfani da layi mai haɗaka: M 1.5mm HDPE Geomembrane (shamaki na farko) + 5kg/m² GCL (shamaki na biyu) + 15cm Layer Cushion Sand. GCL mai kauri da geomembrane suna ba da jan aiki akan abun cikin gishiri da canjin ruwa.
- Side Gangaran Liner System: A nan, kwanciyar hankali da juriya ga busassun hawan keke suna da mahimmanci. Zaɓin shine a Rubutun 1.5mm HDPE Geomembrane (don gogayya) + Ƙarfafa GCL + Kariyar Geotextile mara sakawa. GCL da aka ƙarfafa yana kiyaye amincin sa yayin zagayowar jikewa, kuma membrane ɗin da aka ƙera yana hana zamewa.
- Sarrafa Ruwan Ƙasa: An shigar da cikakkiyar tarin leach da tsarin magudanar ruwa don kiyaye teburin ruwa daga tashi da matsa lamba akan tsarin layin.
Bukatun Gina da Kulawa
Za'a iya lalata babban zane ta hanyar rashin kisa.
- Ikon Gina: Tsarin ƙasa dole ne ya zama santsi, mai ƙarfi, kuma bushe. Dole ne a tura GCLs tare da mafi ƙarancin zoba (yawanci ≥20 cm, ƙara zuwa 30 cm a cikin wuraren da ke da haɗari) kuma a bushe har sai an rufe su. Idan aka yi amfani da shi a cikin tsarin haɗaɗɗiyar, duk weld ɗin geomembrane dole ne a gwada 100%.
- Kulawa na Tsawon Lokaci: Dole ne ƙirar ta haɗa da hanyar sadarwa na sa ido kan rijiyoyi don bin diddigin matakan ruwan ƙasa da ingancin ruwa kwata-kwata. Tsarukan gano ɗigogi da aka sanya tsakanin layin layi suna ba da faɗakarwa na ainihin lokaci. Ya kamata a shirya cikakken kima na geophysical (misali, hoton tsayayyar wutar lantarki) a kowace shekara 3-5 don bincika cikakken amincin tsarin shinge.
Ƙarshe
A Geosynthetic Clay Liner is a powerful tool in environmental containment, but its effectiveness is not absolute. It is highly dependent on its surrounding environment. The best practice is always a "defense in depth" kusanci. Ta hanyar yin la'akari da yanayin yanayin yanayin ƙasa da yanayin ruwa na ƙasa, zaɓar nau'in GCL da ya dace (ko zaɓin geomembrane lokacin da haɗari ke da yawa), da kuma tsara tsarin haɗin gine-gine mai yawa tare da magudanar ruwa mai ƙarfi da kulawa, za mu iya gina shingen da ke da aminci na dogon lokaci.
