Using the wrong geomembrane on a landfill slope is a catastrophic risk. If the cover soil slides off, you face total containment failure, environmental violations, and a massive repair bill.

For any landfill slope, a textured HDPE geomembrane is unequivocally better and safer. Its high-friction surface is specifically designed to grip soil and other geosynthetics, preventing the entire system from sliding down. Smooth geomembranes are only suitable for the flat base of a landfill.

As a supplier for large-scale civil projects, I have seen the consequences of this choice firsthand. There's a long, unfortunate history of landfill slope failures directly caused by using smooth geomembranes. The science is simple: a steep, slick plastic surface covered with thousands of tons of soil is a recipe for a landslide. The development of textured geomembranes was a direct response to this critical safety issue, and today, it's the industry standard for a reason.

What are the key functional differences between smooth and textured HDPE geomembranes?

From a distance, all geomembranes might look the same. This can lead to choosing based on price alone, a mistake that can compromise the entire stability of your landfill design.

The only functional difference is the surface texture, which creates a massive difference in friction. A textured liner is made to grip, while a smooth liner is made to be a simple, low-drag barrier.

This isn't a minor detail; it's the entire point of the product. The choice between them dictates where they can be safely used in an engineered containment system. Their core material and chemical resistance are identical, but their function is fundamentally different.

Feature	Textured HDPE Geomembrane	Smooth HDPE Geomembrane
Surface Structure	Rough, with particles or texture	Completely flat and slick
Primary Function	Provide high friction to prevent sliding	Provide an impermeable barrier on flat surfaces
Typical Friction Coefficient	High (0.4 - 0.6)	Low (0.2 - 0.3)
Best Application	Landfill side slopes, covers on slopes	Landfill base (bottom), flat channels
Relative Cost	Slightly higher	Lower

A smooth geomembrane is incredibly effective and economical for the base of a landfill, where the ground is flat and there's no risk of sliding. It's easy to deploy and weld over large, uncomplicated areas. But the moment you start to design a slope, that same slick surface becomes a dangerous liability. The textured surface was engineered specifically to solve this problem by providing the necessary grip to hold the entire system together.

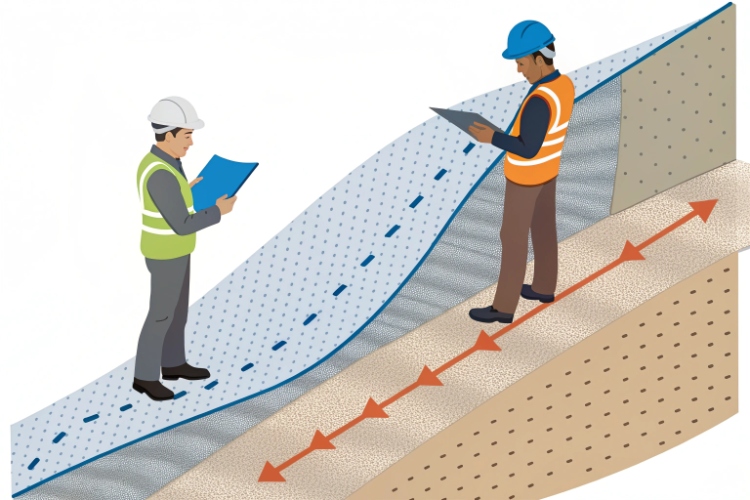

How does interface friction performance vary between smooth and textured HDPE liners on slopes?

Engineers designing landfill slopes are constantly battling the force of gravity. Underestimating the shear forces at play can lead to a "slip-and-slide" failure of the entire liner and cover system.

A textured geomembrane can have more than double the interface friction of a smooth one. This creates a much higher friction angle, which is the critical value that determines if a slope will be stable or not.

This isn't a small improvement; it's a massive leap in performance that fundamentally changes how a slope behaves. In geotechnical engineering, we measure this property with the "friction angle." In simple terms, this is the steepest you can tilt a surface before the material on top of it begins to slide off.

Research has shown the dramatic difference:

• Textured HDPE vs. Soil: Achieves a friction angle of around 42 degrees.
• Smooth HDPE vs. Soil: Achieves a much lower friction angle, typically between 17 and 25 degrees.

This means you can build a much steeper, more stable slope with a textured liner, which is critical for maximizing landfill capacity. This high friction performance is also essential when you have a composite system with multiple layers, like a geotextile or a GCL, placed on top of the geomembrane. The textured surface grips these other geosynthetic layers, preventing them from sliding against each other. Using a smooth liner in this situation would create a weak, slippery plane within your containment system, waiting to fail.

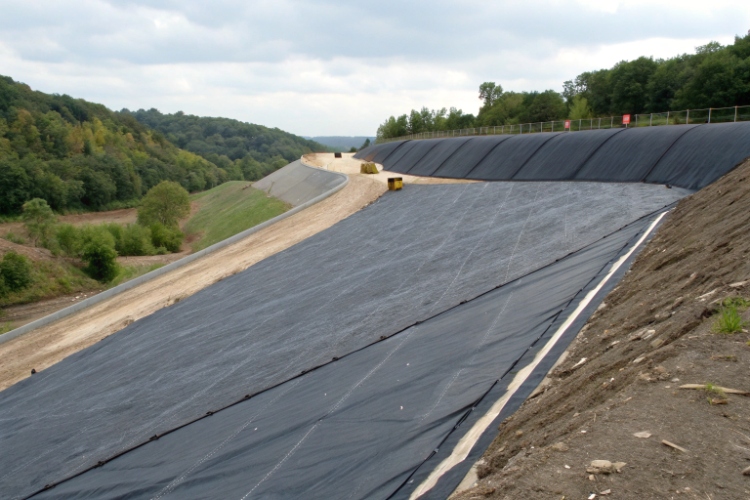

In which conditions is a textured HDPE geomembrane preferred, and when are smooth liners suitable?

A "one-size-fits-all" approach to geomembrane selection is inefficient and dangerous. You might over-spend by using textured material where it isn't needed, or worse, under-engineer a critical slope and cause a failure.

Textured geomembrane is the required choice for any slope steeper than about 3H:1V (a 3-meter run for every 1 meter of height, or ~18°). Smooth liners are only suitable for the flat or very gently sloped base of the landfill.

The best and most common practice in modern landfill design is a "mixed strategy" that leverages the strengths of both materials to create a system that is both safe and cost-effective.

Use a Textured Geomembrane here:

• Landfill Side Slopes: This is its most critical application. Any slope designed to hold waste and a soil cover absolutely requires a textured liner to ensure stability. International research has linked almost all major slope failures to the use of smooth liners.
• Final Cover Systems: The slopes of the final cover system also need a textured liner to hold the topsoil and vegetation in place and prevent erosion.
• Any Slope with Composite Layers: If you are placing a geotextile, drainage net, or GCL over your geomembrane on a slope, a textured surface is essential to lock all the layers together.

Use a Smooth Geomembrane here:

• Landfill Base Liner: On the flat bottom of the landfill, there is no sliding risk. A smooth geomembrane is more economical and easier to install, making it the ideal choice.
• Leachate Collection Ponds/Trenches: In flat or very gently sloped areas designed for liquid collection, a smooth liner is perfectly sufficient.

This mixed approach is the smartest way to design your landfill. You get the unbeatable safety of textured material on the high-risk slopes while benefiting from the cost savings and easier installation of smooth material on the low-risk flat areas.

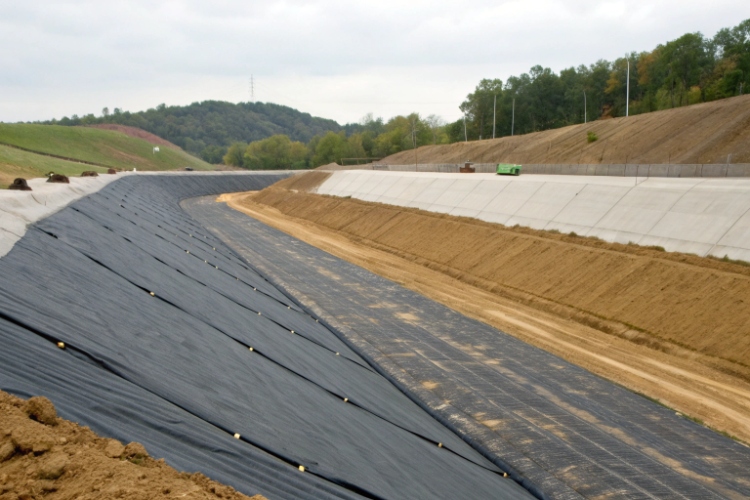

How can I assess long-term stability when choosing between smooth and textured geomembranes?

Your job isn't done once you've selected the right material. A long-term failure can still happen if installation is poor, nullifying the benefits of even the best-designed product.

For long-term slope stability, the choice of a textured liner must be paired with rigorous installation quality control. This includes meticulous welding, ensuring full contact with the subgrade, and proper cover soil placement.

The long-term safety of your slope depends on the geomembrane performing as part of a complete system. While the base durability of the HDPE plastic is the same for both smooth and textured products, you must pay closer attention to the installation of textured liners.

• Welding and Seaming: Welding on a textured surface can be slightly more complex than on a smooth one. Technicians must ensure that the textured pattern doesn't create tiny channels or interfere with a perfect thermal bond. This requires experienced welders and a strict quality assurance (QA) and quality control (QC) program, including destructive testing of weld samples.
• Subgrade Contact: For the textured surface to provide friction, it must be in direct, intimate contact with the soil or geotextile beneath it. Any voids or "bridging" over soft spots will create points of weakness and reduce its effectiveness.
• System Integrity: Remember, the liner is just one component. The stability of the entire slope also depends on the compaction of the soil subgrade beneath it and the proper placement and compaction of the cover soil above it. Good drainage behind the slope is also critical to prevent water pressure from building up and causing a failure. A textured liner is not a magic bullet; it is an essential component of a well-designed and well-built system.

Conclusion

The best practice is a mixed strategy: use cost-effective smooth geomembrane on the flat landfill bottom and high-safety textured geomembrane on all slopes to prevent catastrophic sliding failures.
