Your project needs filtration, separation, or protection. But picking the wrong fabric leads to failure and budget overruns. Nonwoven geotextiles offer a versatile solution if you know their specific strengths.

Nonwoven geotextiles are highly versatile fabrics known for their excellent filtration, drainage, and cushioning capabilities. Their main uses include separation in roads, erosion control on slopes, and protecting geomembrane liners, making them a staple in civil engineering.

As a supplier, I ship containers of both woven and nonwoven geotextiles, and they are completely different tools for different jobs. While woven fabrics are the champions of high-strength reinforcement, nonwovens are the undisputed workhorses for tasks involving water flow and protection. Their unique internal structure gives them capabilities that woven fabrics simply cannot match. Let's start with how they're made.

What defines a nonwoven geotextile and how is it made?

You see "nonwoven" on a spec sheet, but what does that actually mean? Not knowing the manufacturing process can lead you to misapply the material, which puts your entire project at risk.

A nonwoven geotextile is a fabric made from randomly distributed synthetic fibers (usually polypropylene). These fibers are bonded together by needle-punching or thermal processes, creating a thick, felt-like material instead of a regular woven grid.

The secret to a nonwoven's performance is in its random, three-dimensional structure. Unlike a woven fabric, which has a predictable grid-like pattern, a nonwoven is more like a dense mat of interlocked fibers. This structure is created primarily through two methods.

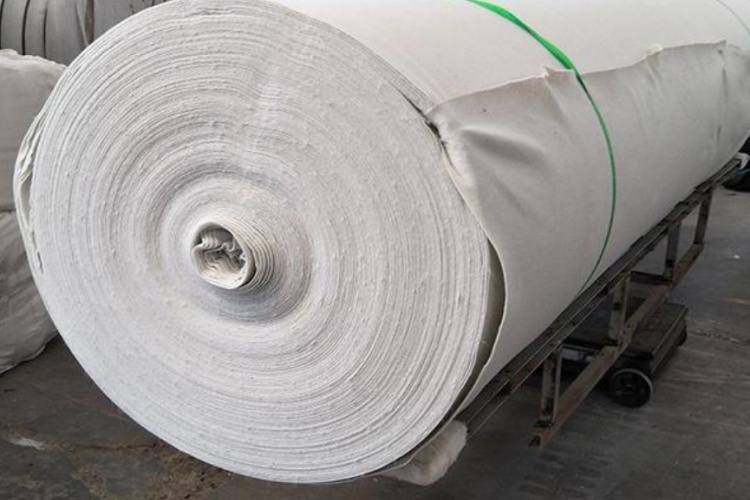

Needle-Punching Process

This is the most common method for creating the nonwovens used in civil engineering. A mat of loose fibers is passed through a machine with thousands of barbed needles. The needles move up and down, punching through the mat and physically tangling and interlocking the fibers together. This process creates a thick, permeable fabric with a felt-like feel. The three-dimensional web of fibers is what gives the material its excellent capacity for water flow and its ability to cushion against impact.

Thermal Bonding Process

In this method, heat is used to bond the fibers. The fibers, often a mix of polymers with different melting points, are passed through heated rollers. The heat melts some of the fibers, which then fuse the entire mat together as it cools. Thermally bonded nonwovens are typically thinner and less permeable than their needle-punched counterparts but can offer different strength characteristics. For most earthwork involving drainage and protection, needle-punched is the standard.

What key characteristics make nonwoven geotextiles effective?

A nonwoven's spec sheet lists many properties. Focusing on the wrong one, like tensile strength, can be a major mistake. You need to know which characteristics truly matter for your specific application.

The most effective characteristics are high permeability for drainage, excellent filtration to retain soil, and substantial thickness for cushioning. While their tensile strength is lower than wovens, their flexibility and conformability make them ideal for uneven ground.

When I consult with clients, I always guide them to focus on three key performance traits that set nonwovens apart. It's not about being the strongest; it's about having the right skills for the job.

Characteristic	How It Works	Why It's Important
High Permeability	The random, 3D fiber structure creates a porous path, allowing water to pass through easily, both across and through the fabric.	Essential for drainage applications like french drains and behind retaining walls to relieve hydrostatic pressure. Prevents water buildup.
Excellent Filtration	The complex pore structure is small enough to trap fine soil particles while still allowing water to flow freely.	Prevents clogging of drainage systems and stops soil migration, which can lead to ground instability. It keeps soil in place.
Thickness & Cushioning	The thick, felt-like body of the fabric absorbs impact energy from sharp rocks and dissipates the force over a wide area.	Critical for protecting expensive geomembrane liners from being punctured during and after installation.
Flexibility & Elongation	The fabric can stretch and conform to uneven surfaces, rocks, and dips in the ground without tearing.	Makes installation much easier and faster, especially on difficult terrain. It reduces the risk of damage from ground settlement.

In what types of engineering projects are nonwoven geotextiles commonly used?

You have a roll of nonwoven geotextile. But where can you actually use it? Using it for the wrong job, like high-strength reinforcement, can lead to immediate and costly project failure.

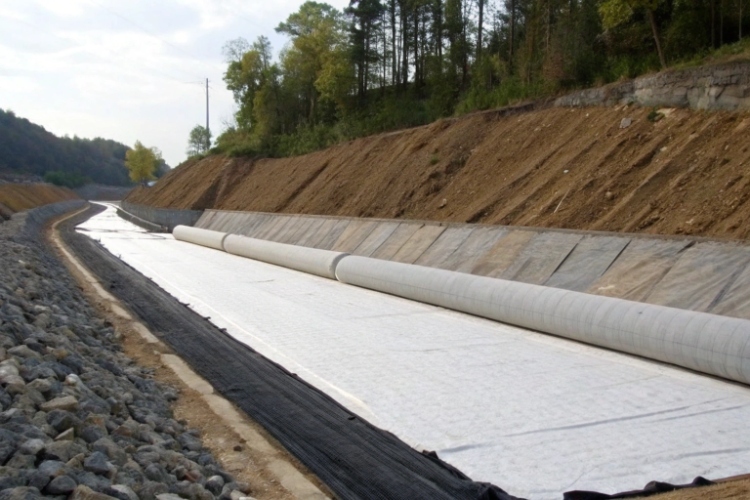

Nonwoven geotextiles are the go-to material for separation in roads, filtration in drains, erosion control on slopes, and as a protective cushion for geomembranes in landfills and reservoirs. Their versatility makes them a standard tool for civil engineers.

The multi-functionality of nonwovens is why they are so popular. One roll of fabric can solve many different problems on a single job site. I've supplied nonwovens for a huge range of successful projects. Here is a breakdown of their primary uses:

Function	Specific Project Application	How It Works
Filtration	Behind retaining walls; Wrapping French drain pipes; Under rip-rap for shoreline protection.	Lets water pass through to the drain while holding back the fine soil that would otherwise clog the system and cause failure.
Separation	Between subgrade and aggregate in roads, railways, and parking lots; Under paver patios.	Prevents the expensive gravel layer from sinking into the soft soil below, maintaining structural integrity and extending the road's life.
Cushioning / Protection	Directly on top of geomembrane liners in landfills, reservoirs, and canals.	Acts as a thick, protective blanket, stopping sharp rocks in the drainage layer or waste from puncturing the critical waterproof liner.
Drainage	In sports fields; Green roofs; Leachate collection systems in landfills.	The fabric itself can transmit water laterally within its plane, helping to drain away excess water from a large area.

How can I choose the right nonwoven geotextile based on project requirements?

Choosing between a light, medium, or heavy-duty nonwoven can be confusing. Picking the wrong weight can lead to either inadequate performance or a wasted budget. So how do you specify correctly?

Select the right nonwoven geotextile primarily based on its mass per unit area (gsm). Lighter fabrics (150-200 gsm) excel at filtration, medium weights (300-400 gsm) are for separation, and heavyweights (600+ gsm) are required for protection.

When a client asks for a price, my first question is always, "What are you using it for?" The answer determines the specification we need. The choice is a simple trade-off between water flow, durability, and cost. Here is a simple guide to help you choose.

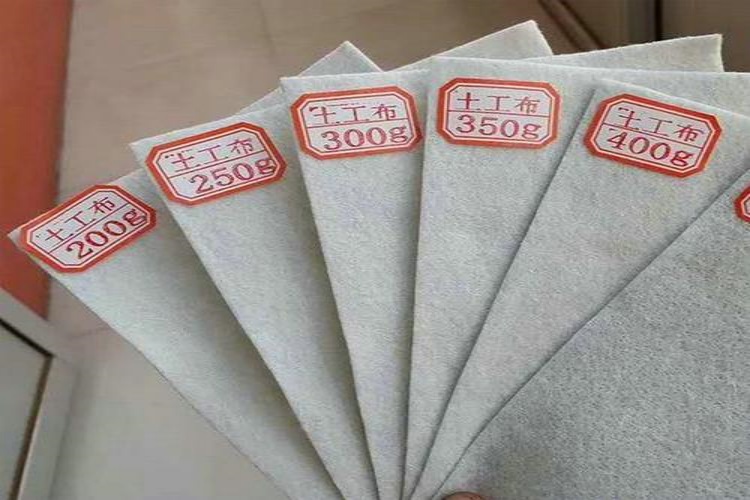

Lightweight (150 - 250 gsm)

These fabrics are best for pure filtration tasks where water flow is the top priority and physical stress is low. They are highly permeable and cost-effective.

• Best Use: Wrapping a perforated drain pipe, garden drainage, or as a silt fence filter.
• Key Property: High Permittivity (water flow rate).

Medium-Weight (300 - 500 gsm)

This is the all-around workhorse for most general site work. It offers a good balance of filtration, durability, and strength, making it ideal for separation tasks.

• Best Use: Separating soil layers under driveways, access roads, and parking lots.
• Key Properties: Good puncture resistance (CBR) and tensile strength.

Heavyweight (600+ gsm)

When protection is the main goal, you need the thickest, heaviest fabric you can get. These fabrics are designed to absorb serious impact and protect critical infrastructure.

• Best Use: Cushioning a geomembrane liner from sharp rocks in a landfill or reservoir.
• Key Property: High Mass per Unit Area and high Puncture Resistance.

Conclusion

Nonwoven geotextiles are essential, multi-functional problem solvers. Their unique structure makes them the best choice for filtration, separation, drainage, and protection tasks in countless civil engineering projects across the globe.
