Building on weak, unstable ground often leads to structural failure and costly repairs. Woven geotextiles provide the high-strength reinforcement needed to create a stable foundation, ensuring your project succeeds.

Woven geotextiles are high-strength fabrics used for soil reinforcement, stabilization, and separation. Their key features are exceptionally high tensile strength and low elongation, making them ideal for building roads, reinforcing embankments, and stabilizing soft ground.

As a geosynthetics supplier, I often call woven geotextiles the "rebar of soil engineering." While flexible nonwoven fabrics are great for filtration and drainage, woven geotextiles are the heavy lifters. They are specifically engineered to take immense tension and hold things together. Understanding how they achieve this strength is the key to using them correctly to save money and improve the performance of your civil works.

How is a woven geotextile defined and what manufacturing process creates its woven structure?

Choosing the wrong fabric is a big risk. You might get a material that stretches too much under load or isn't strong enough for the job. Understanding how woven geotextiles are manufactured clarifies why they are so strong and stable.

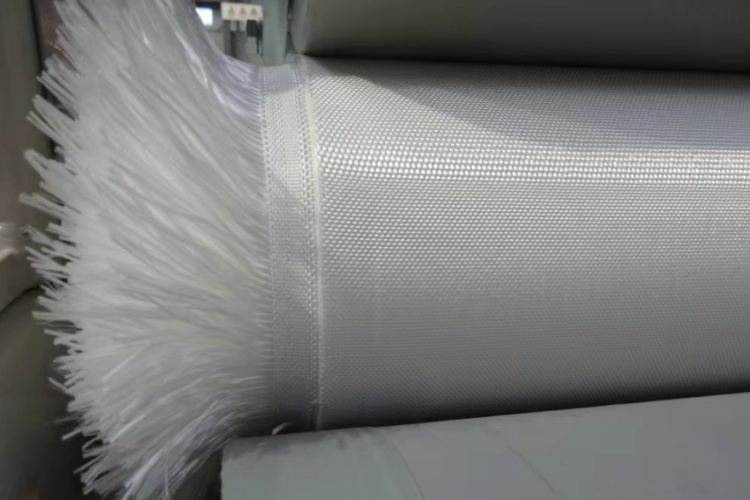

A woven geotextile is a flat fabric made by interlacing strong synthetic yarns in two perpendicular directions (warp and weft). This process, done on industrial looms, creates a highly stable, grid-like structure with immense strength.

The manufacturing process is the source of a woven geotextile's power. It’s not a random mat of fibers; it's a precisely engineered structure. Flat tapes or filaments of high-strength polymer, usually polypropylene or polyester, are loaded onto a large industrial loom. One set of yarns, called the warp, runs lengthwise down the fabric roll. The other set, the weft, is interlaced back and forth across the warp yarns. This tight, interlocking grid is what gives the fabric its signature characteristics: very high da tenerile and very low elongation, or stretch. Because the yarns are already under tension and locked into place, the fabric can immediately resist forces without stretching much. This is fundamentally different from other types of geotextiles and is why it excels at reinforcement. The process allows us to create fabrics with specific strengths in each direction to match the needs of an engineering design.

Which technical characteristics specifically distinguish woven geotextiles?

A spec sheet with dozens of numbers can be confusing. Focusing on the wrong parameters can lead to a road that develops ruts or a retaining wall that fails. Knowing what truly matters for woven fabrics is essential.

Woven geotextiles are defined by their extremely high tensile strength for reinforcement, a high tensile modulus that prevents stretching under load, and low permeability, which makes them unsuited for drainage but great for separation.

When my clients are selecting a woven geotextile, I tell them to ignore many of the specs that matter for other fabrics and focus on these three game-changers.

High Tensile Strength

This is the fabric’s ability to resist being pulled apart. Measured in kilonewtons per meter (kN/m), woven geotextiles boast impressive values, often ranging from 50 kN/m to over 300 kN/m. This strength allows them to act like a net, holding soil together and distributing heavy loads from traffic over a much larger area. This prevents localized failure on soft ground.

High Modulus and Low Elongation

Modulus is a measure of stiffness. Woven geotextiles have a high modulus, which means they resist stretching. They typically only elongate 5% to 25% before reaching their breaking strength. This low-stretch behavior is critical. When a truck drives over a road built on a woven geotextile, the fabric immediately takes the load with minimal give. This prevents the formation of ruts and maintains the road's surface integrity.

Low Permeability

The tight weave that gives the fabric its strength also means there are very few, small openings for water to pass through. This low permeability makes them a poor choice for applications needing drainage. However, this same property makes them excellent for separation and certain erosion control applications where you need to prevent soil layers from mixing.

In what engineering applications are woven geotextiles most commonly employed?

You have weak, unstable ground, and building on it directly is asking for trouble. This is where woven geotextiles prove their worth, creating a stable platform where construction would otherwise be impossible.

Woven geotextiles are the primary solution for building roads over soft soils, reinforcing slopes and retaining walls, stabilizing railway beds, and separating aggregate layers in large paved areas like parking lots and airport tarmacs.

In my years of exporting these materials, I've seen them solve some of the toughest ground stabilization challenges. Their ability to reinforce and separate makes them indispensable in heavy civil construction. One roll of fabric can do the work of tons of extra gravel, saving both time and money. Here are some of their most common and effective uses:

Application	Primary Function	How It Works
Unpaved & Paved Roads	Ƙarfafa & Rabuwa	Placed on soft subgrade, it prevents the aggregate base from mixing with the soil and distributes traffic loads, preventing ruts.
Steep Embankments	Ƙarfafa	Layered within the soil fill, the fabric acts as horizontal tensile reinforcement, allowing for the construction of steeper, more stable slopes.
Segmental Retaining Walls	Ƙarfafa	Extends back from the wall face into the soil, anchoring the wall and creating a stabilized soil mass that resists overturning.
Railway Track Beds	Rabuwa & Stabilization	Prevents the railway ballast from punching into the soft subgrade, maintaining track geometry and reducing maintenance needs.
Coastal & Dam Protection	Rabuwa & Ƙarfafa	Placed under heavy armor stone (rip-rap), it prevents underlying soil erosion while providing a strong base for the rock layer.
Haul Roads & Mining Platforms	Stabilization	Creates a stable surface for heavy equipment on temporary roads or platforms built over very weak or marshy ground.

How can I match woven geotextile specifications to my project's requirements?

Choosing between different strengths of woven geotextile can feel like a guess. Specifying a fabric that is too weak can lead to failure, while over-specifying wastes money. There is a straightforward way to make the right choice.

Match the woven geotextile to your project by first identifying the main function. For reinforcement, focus on the required tensile strength (kN/m). For separation, prioritize durability and puncture resistance to survive installation with your specific aggregate.

When a client sends me their project plans, I help them zero in on the critical numbers on the technical data sheet. It’s a process of matching the fabric’s capabilities to the forces it will encounter on site.

For Reinforcement Applications

If you are building a retaining wall or an embankment over soft soil, the most important value is the Ultimate Tensile Strength (kN/m). The project engineer will calculate the required force the fabric must resist. You should also consider creep resistance. For permanent structures under constant load, a polyester (PET) woven geotextile is often a better choice than polypropylene (PP), as it stretches less over many years.

For Separation and Stabilization Applications

If you are building a road or parking lot, you still need strength, but a key factor is survivability during installation. You need a fabric that won't be punctured or torn by the sharp aggregate being placed and compacted on top of it. Look for Puncture Resistance (CBR) da Trapezoidal Tear Strength. These values tell you how tough the fabric is. A stronger fabric allows you to use less aggregate base, which is often a major cost saving. Many designs find they can reduce aggregate thickness by 15% to 30%, which more than pays for the cost of the geotextile.

Conclusion

Woven geotextiles are the high-strength solution for soil reinforcement and separation. Their exceptional tensile strength and low stretch provide crucial stability for roads, walls, and embankments, ensuring long-term structural performance.
