Using a standard geomembrane on a rough subgrade is a huge gamble. A single sharp stone can cause a puncture, compromising your entire containment system before the landfill even opens.

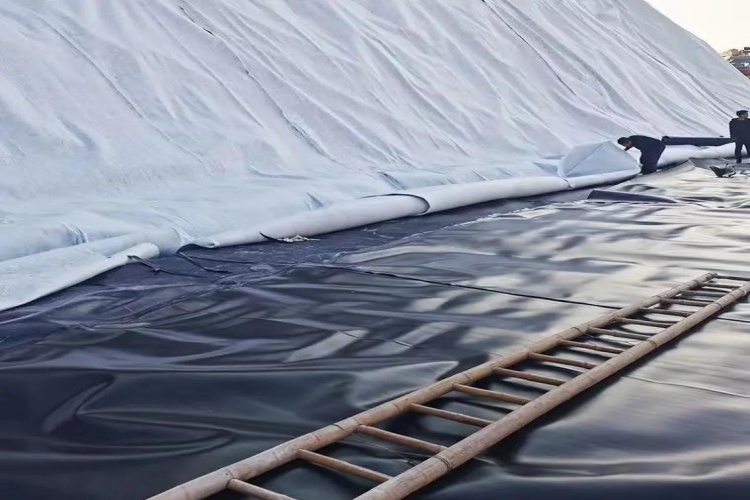

A composite geomembrane, which combines a geomembrane with a bonded geotextile, is most effective in landfills with irregular or rocky subgrades. The integrated geotextile layer provides built-in puncture protection, eliminating a separate installation step and greatly increasing durability.

As a geosynthetics specialist, I always point out that composite geomembranes are not just a product; they are an integrated solution. Instead of buying and installing a geotextile and a geomembrane separately, you get them in a single, factory-bonded roll. This not only saves significant time and labor on-site but also ensures a perfectly consistent bond between the protective fabric and the impermeable membrane layer—something that is very difficult to achieve with separate layers, especially on steep slopes.

What functional properties of composite geomembranes make them suitable for specific landfill needs?

You might think that buying a separate geomembrane and geotextile offers more flexibility. However, this often leads to higher costs, longer installation times, and greater risk of on-site errors.

The key property is the factory integration of the layers. This creates a unified product with built-in protection and enhanced friction, offering superior performance against punctures, sliding, and stress compared to separately installed components.

The beauty of a composite geomembrane is how it combines the best properties of different materials into one synergistic unit. A "Two-Fabric, One-Membrane" composite, for example, sandwiches the impermeable HDPE membrane between two layers of protective geotextile, offering the ultimate defense.

Property	Composite Geomembrane	Separate Geomembrane + Geotextile
Puncture Protection	Excellent. The geotextile is factory-bonded, offering direct and consistent cushioning.	Good, but dependent on perfect on-site placement without wrinkles or gaps.
Interface Friction	High and reliable. The bonded texture provides consistent grip for slope stability.	Variable. Liable to slippage between the two separate layers if not installed perfectly.
Installation Efficiency	High. One product is unrolled and installed, significantly reducing labor and time.	Lower. Requires two separate installation steps, increasing complexity and project duration.
Quality Control	High. The bond between layers is factory-controlled and consistent.	On-site dependent. Quality relies heavily on installer skill and site conditions.
Joints & Seams	Fewer potential leak paths. The main seams are only between the geomembrane portions.	More seams and overlaps, increasing the potential points of failure.

For large, standardized projects like landfill cells, the efficiency and reliability of a composite geomembrane almost always provide better value and lower risk than assembling the layers separately on-site.

How do composites perform under varying landfill conditions?

Landfills are harsh environments. They settle, move, generate aggressive chemicals, and endure extreme weather. A liner that works in a lab might fail quickly under these real-world stresses.

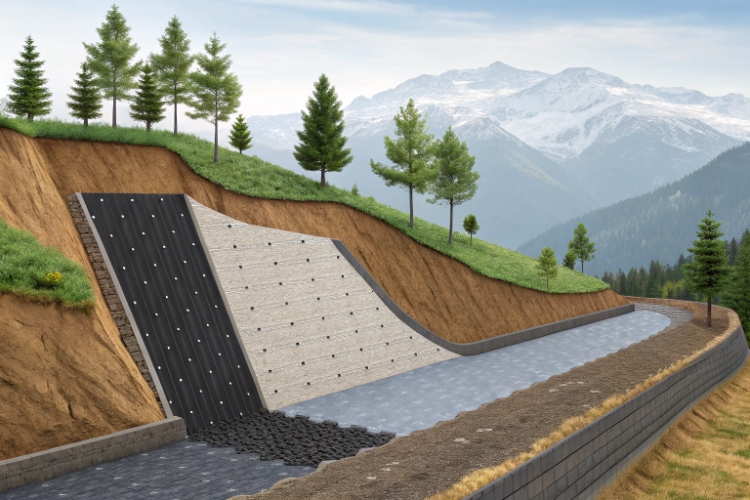

Composite geomembranes excel in challenging conditions. The geotextile layer helps distribute stress from ground settlement, provides a friction layer for steep slopes, and acts as a robust protective cushion against punctures and temperature fluctuations.

A single-layer HDPE geomembrane is strong, but it's also vulnerable. A composite design addresses these vulnerabilities directly.

• High Settlement: As waste degrades, landfills can settle several feet. The bonded geotextile in a composite liner helps absorb and distribute these tensile stresses, preventing the geomembrane from being stretched to its breaking point.
• Aggressive Leachate: For hazardous waste, a composite of HDPE and a Geosynthetic Clay Liner (GCL) is ideal. The HDPE provides primary chemical resistance, while the GCL acts as a self-healing backup, sealing any minor leaks that might get through.
• Steep Slopes: The bonded geotextile provides a consistent, high-friction surface. On a steep slope, trying to lay a separate geotextile and geomembrane without wrinkles or slippage is a major challenge. The integrated composite solves this problem.
• Cold Climates: HDPE expands and contracts with temperature changes. In cold climates, this stress can concentrate at the seams, causing ruptures. The bonded geotextile helps buffer these movements, spreading the stress over a wider area and protecting the seams.

In which scenarios does a composite provide advantages over single-layer systems?

Specifying a composite geomembrane for a simple, flat area with perfect subgrade might be overkill. But in most landfill applications, the added security and efficiency are well worth it.

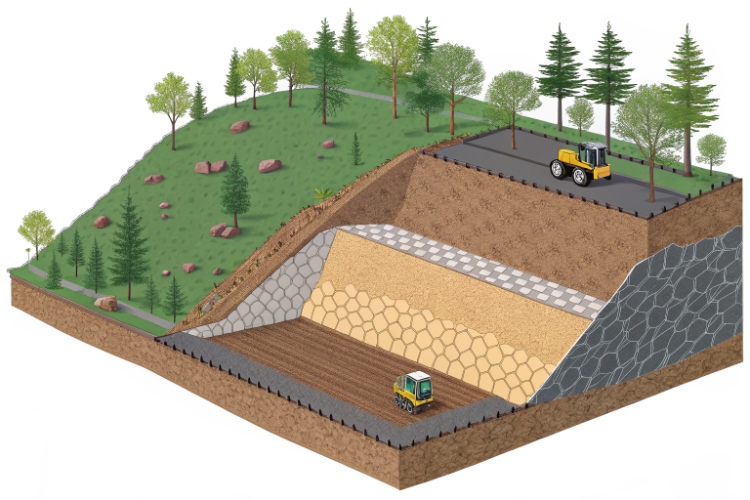

Composites offer the biggest advantages on landfill slopes, over rough or weak subgrades, and in base liners for high-risk containment. They essentially combine the barrier layer and the protection layer into one foolproof product.

Based on my experience supplying materials for all types of landfills, here is a clear guide on where composites provide the most value.

Landfill Area	Recommended Composite Type	Justification
Base Liner (Bottom)	Two-Fabric, One-Membrane (e.g., 800-1000g/m²)	This is the primary barrier and faces the highest risk. The two fabric layers provide maximum puncture protection for the central membrane from both the subgrade below and the drainage layer above.
Side Slopes	Two-Fabric, One-Membrane (e.g., 800-1200g/m²)	Needs both high puncture resistance and high friction. The dual fabric layers offer superior protection and grip, critical for preventing slides on steep slopes under high waste pressure.
Final Cover / Capping	One-Fabric, One-Membrane (e.g., 400-600g/m²)	The loads are lighter here. A single fabric layer provides sufficient protection and drainage separation, accommodating long-term settlement of the waste mound below.
Leachate Drainage Layer	One-Fabric, One-Membrane (e.g., 400-600g/m²)	Here, the fabric acts primarily as a filter to prevent soil from clogging the drainage system. The membrane provides a secondary impermeable barrier.

How can I evaluate project requirements to determine when a composite geomembrane is needed?

You need to match the product to the project's specific risks and budget. Choosing the right composite spec ensures you get the necessary protection without overspending.

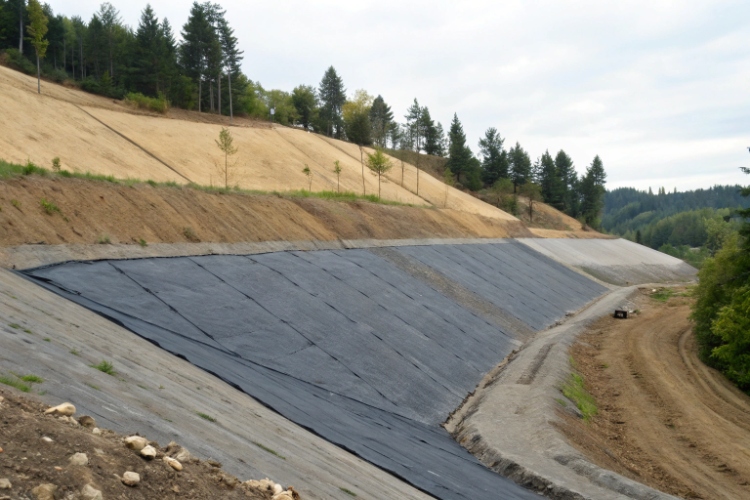

Evaluate the subgrade condition, slope steepness, leachate toxicity, and long-term settlement expectations. If your project involves rough terrain, slopes over 4H:1V, or requires maximum long-term security, a composite geomembrane is the most reliable choice.

Here’s a practical decision matrix I use to help clients choose the right specifications.

Project Condition	When to Choose a Composite Geomembrane	Recommended Specification
Subgrade	Rough, rocky, or uneven ground where puncture risk is high.	Two-Fabric, One-Membrane to provide protection from both sides. (e.g., 800g/m² fabric, 1.0mm membrane)
Slopes	Any slope steeper than 4H:1V where sliding is a concern.	Two-Fabric, One-Membrane with a high-friction surface. (e.g., 1000g/m² fabric, 1.0-1.5mm membrane)
Leachate	Aggressive chemical composition or high-volume generation.	HDPE/GCL Composite for redundant containment and self-healing properties.
Construction Schedule	Fast-track projects where reducing installation steps is critical.	Any composite system will be faster than installing separate layers.
Budget	Budget-constrained municipal projects needing high performance.	Composite GCL/Geomembrane products. These offer composite performance at a lower material and installation cost than separate layers.

When you send an inquiry, providing these details—like the total area, slope angles, and subgrade type—allows a supplier like me to recommend the most effective and economical composite product for your specific landfill.

Conclusion

Composite geomembranes offer superior protection, faster installation, and greater long-term reliability than separate layers, especially in challenging landfill conditions like rough subgrades, steep slopes, and high-risk containment applications.
