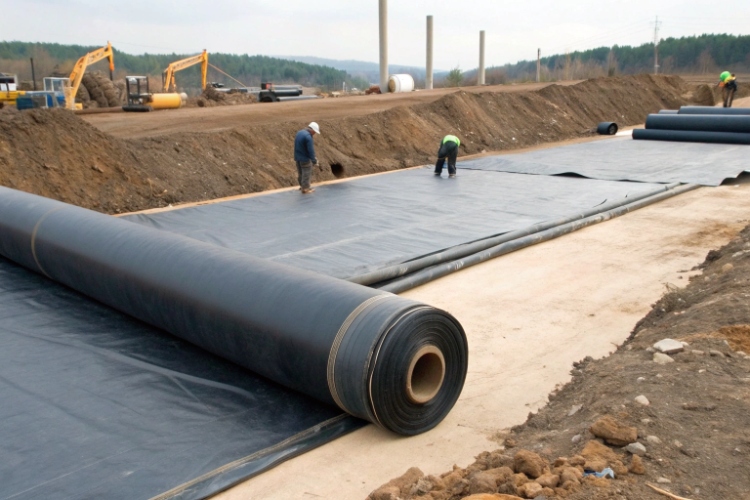

Choosing the right geomembrane often comes down to thickness, but is thicker always better? While robust 1.5 mm or 2.0 mm liners are essential for high-risk applications, a 0.5 mm (20 mil) HDPE geomembrane can be a smart, cost-effective solution when used correctly. The key is understanding its specific strengths and, more importantly, its limitations.

This guide provides a clear look at the 0.5 mm HDPE geomembrane. We will cover its ideal applications, its significant advantages in cost and flexibility, and the critical precautions you must take during installation. This will help you decide if this thin, versatile liner is the right choice for your project or if a thicker material is required.

Understanding this material is about balancing cost and performance. When used within its design limits, it's an excellent tool. When pushed beyond them, it can become a liability.

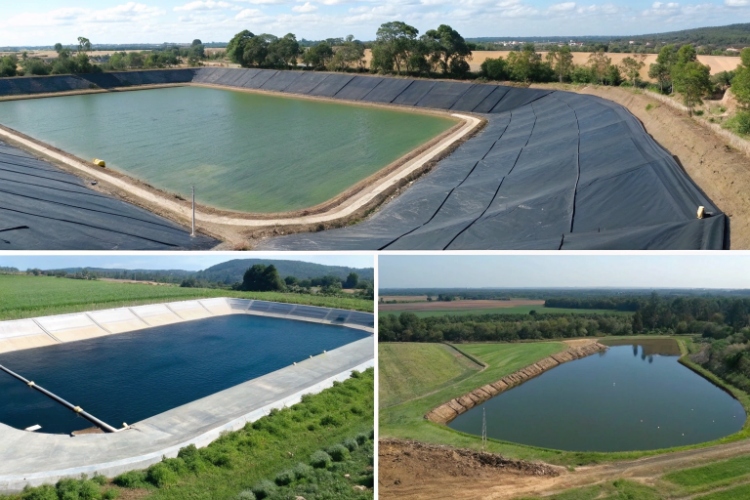

Common Applications for 0.5 mm (20 mil) HDPE Liners

A 0.5 mm HDPE geomembrane is designed for low-risk or shallow containment projects where high puncture resistance and extreme chemical tolerance are not the primary concerns. Its flexibility and lower cost make it a go-to choice for a range of applications.

We see it used most successfully in:

• Agricultural Ponds and Irrigation Canals: It provides an effective, affordable barrier for containing water for farming and irrigation, where the subgrade can be well-prepared.
• Aquaculture (Fish and Shrimp Ponds): In controlled environments, it creates a clean, impermeable barrier that prevents water loss and helps maintain water quality.
• Decorative Ponds and Water Features: For garden ponds and architectural water features, its flexibility allows it to conform easily to custom shapes.
• Temporary Water Storage: For construction sites or temporary water harvesting basins, it serves as a reliable short-term containment solution.
• Secondary Containment for Low-Risk Facilities: It can be used as a secondary barrier beneath tanks storing non-hazardous liquids.

It's important to note that while 0.5 mm HDPE has been used for potable water storage, many municipal regulations now mandate a minimum thickness of 0.75 mm or 1.0 mm. Always verify local requirements before specifying this material for drinking water applications.

Advantages of Using 0.5 mm HDPE Geomembranes

The primary driver for choosing a 0.5 mm liner is the significant cost-benefit for suitable projects.

• Cost-Effectiveness: A 0.5 mm liner can be 30–40% less expensive per square meter than a 1.0 mm liner. For large-scale agricultural or water storage projects with tight budgets, this saving is substantial and can make a project feasible.
• Flexibility and Handling: Thinner material is more pliable and lighter, making it easier to handle, position, and weld, especially in smaller, more intricate projects like garden ponds or canal linings.
• Efficient Installation: The lighter weight of the rolls means less heavy equipment is needed for deployment, which can speed up installation time and reduce labor costs.

This cost-vs-performance trade-off is the most critical factor in your decision. For a detailed comparison across all common thicknesses, you can review our complete guide to choosing the right geomembrane thickness.

Limitations and When 0.5 mm Should NOT Be Used

The cost savings of a 0.5 mm liner are only valuable if the material is appropriate for the application. Its primary weakness is its low mechanical strength, particularly its resistance to puncture.

With a puncture resistance of around 200–300 N (per ASTM D4833), it offers minimal protection against sharp rocks, angular subgrade, equipment traffic, or even animal intrusion. Therefore, 0.5 mm HDPE geomembrane is absolutely not recommended for:

• Landfill Liners or Caps: These are highly regulated, high-risk applications requiring robust, long-term containment and much thicker materials (typically ≥1.5 mm).
• Mining Heap Leach Pads or Tailings Dams: The combination of aggressive chemical exposure and heavy loads from ore makes thin liners completely unsuitable.
• Critical Chemical Containment: Any application involving hazardous or aggressive chemicals requires a thicker geomembrane with proven chemical resistance data.
• High-Load Areas: Any surface that will experience vehicle traffic, heavy overburden, or significant settlement stress requires a much more durable liner.

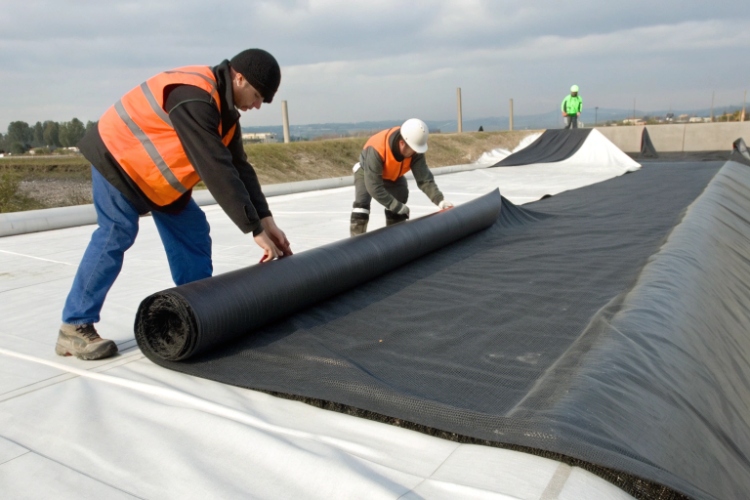

Critical Installation and Handling Considerations

Because the margin for error is so small, installing a 0.5 mm geomembrane requires greater care and precision than thicker materials.

Mandatory Protective Geotextile

This is non-negotiable. To compensate for its low puncture resistance, a 0.5 mm liner must always be installed with a protective nonwoven geotextile underlayment. We recommend a geotextile with a weight of at least 300–500 g/m² (8–12 oz/yd²). This cushion layer protects the liner from any imperfections in the subgrade.

Subgrade Preparation

The surface beneath the geotextile must be smooth, uniform, and well-compacted (to at least 95% Proctor density). All rocks, roots, construction debris, and sharp objects must be completely removed.

Thermal Expansion

Thinner materials react more to temperature changes. A 0.5 mm liner can move 30–40 mm per 100 meters with a 40°C temperature shift. Installers must leave adequate slack and use larger anchor trenches to accommodate this thermal expansion and contraction, preventing tensile stress that can damage the liner or its seams.

Seam Quality

Due to the thinness of the material, seams on a 0.5 mm liner typically achieve only 70–85% of the parent material's strength, compared to over 90% for thicker liners. This makes quality control during welding even more critical. Dual-track fusion welding with an air channel test is highly recommended to verify seam integrity.

Environmental and UV Exposure Considerations

The service life of a geomembrane is directly related to its thickness, especially when exposed to sunlight.

A 0.5 mm HDPE liner can have a design life of 15–25 years when properly buried and protected from UV radiation. However, if left directly exposed to the sun, its service life can drop dramatically to just 5–10 years. The UV radiation will gradually degrade the polymer, making it brittle and prone to cracking.

For any application where the liner will be exposed for the long term, you should either:

1. Cover the Liner: Protect it with a layer of soil, sand, or gravel.
2. Specify a UV-Stabilized Formulation: Request a material with a premium UV additive package, which can extend the exposed service life but comes at a higher cost.

Best Practices for Ensuring Safe and Proper Use

To successfully use a 0.5 mm HDPE liner while managing its risks, you must adopt a system-based approach.

The most important best practice is to always pair it with a protective geotextile. This combination of materials is often the most cost-effective way to achieve the necessary performance in a bad construction environment where your goal is to save money upfront. The geotextile provides the puncture protection that the thin liner lacks.

Consider a Composite Alternative

For light-duty applications, a modern alternative is emerging: a geocomposite liner. This product consists of a 0.5 mm HDPE geomembrane factory-bonded to a nonwoven geotextile. This composite can offer superior puncture resistance and simpler installation compared to buying and deploying two separate layers, often at a cost competitive with a bare 1.0 mm HDPE liner. It's an excellent option to discuss with your supplier.

Conclusion

A 0.5 mm (20 mil) HDPE geomembrane is not a lesser product; it's a specialized one. It offers unbeatable cost-effectiveness for low-risk applications like agricultural ponds, canals, and temporary containment. However, its success is entirely dependent on acknowledging its limitations—particularly its low puncture resistance—and compensating for them with meticulous subgrade preparation and the mandatory use of a protective geotextile layer. When used wisely, it's the right tool for the right job.
